Custom off road Relay panel

MaxFlate Air systems is proud to now offer Custom made Relay Panels!

Does wiring scare you? Have you purchased off road lights, fridges, radios or more but not sure how to make them all work with your vehicles electrical system?

The MaxFlate relay panel will make setting up all those devices a breeze!

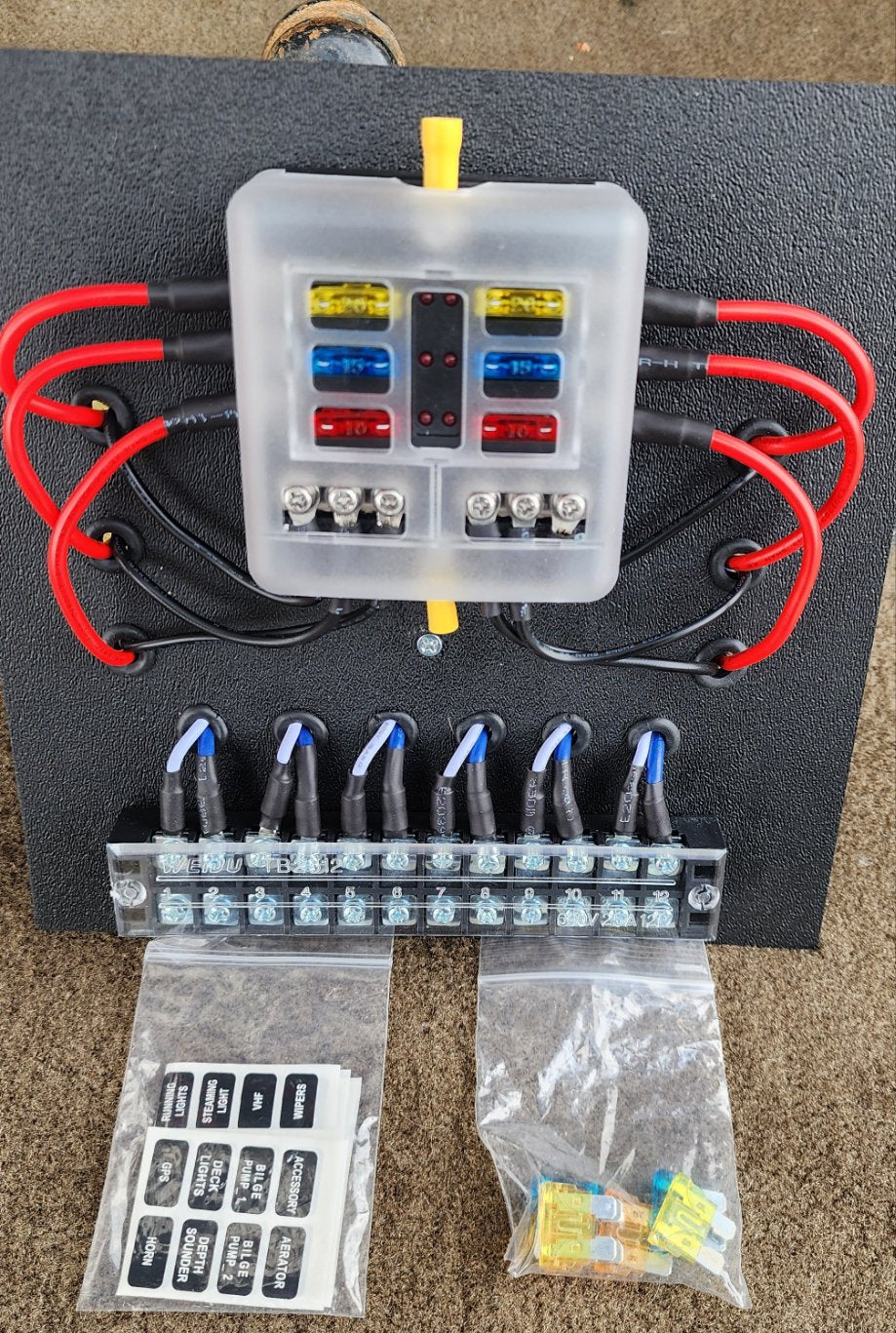

This Custom 6 Relay panel includes all of the following:

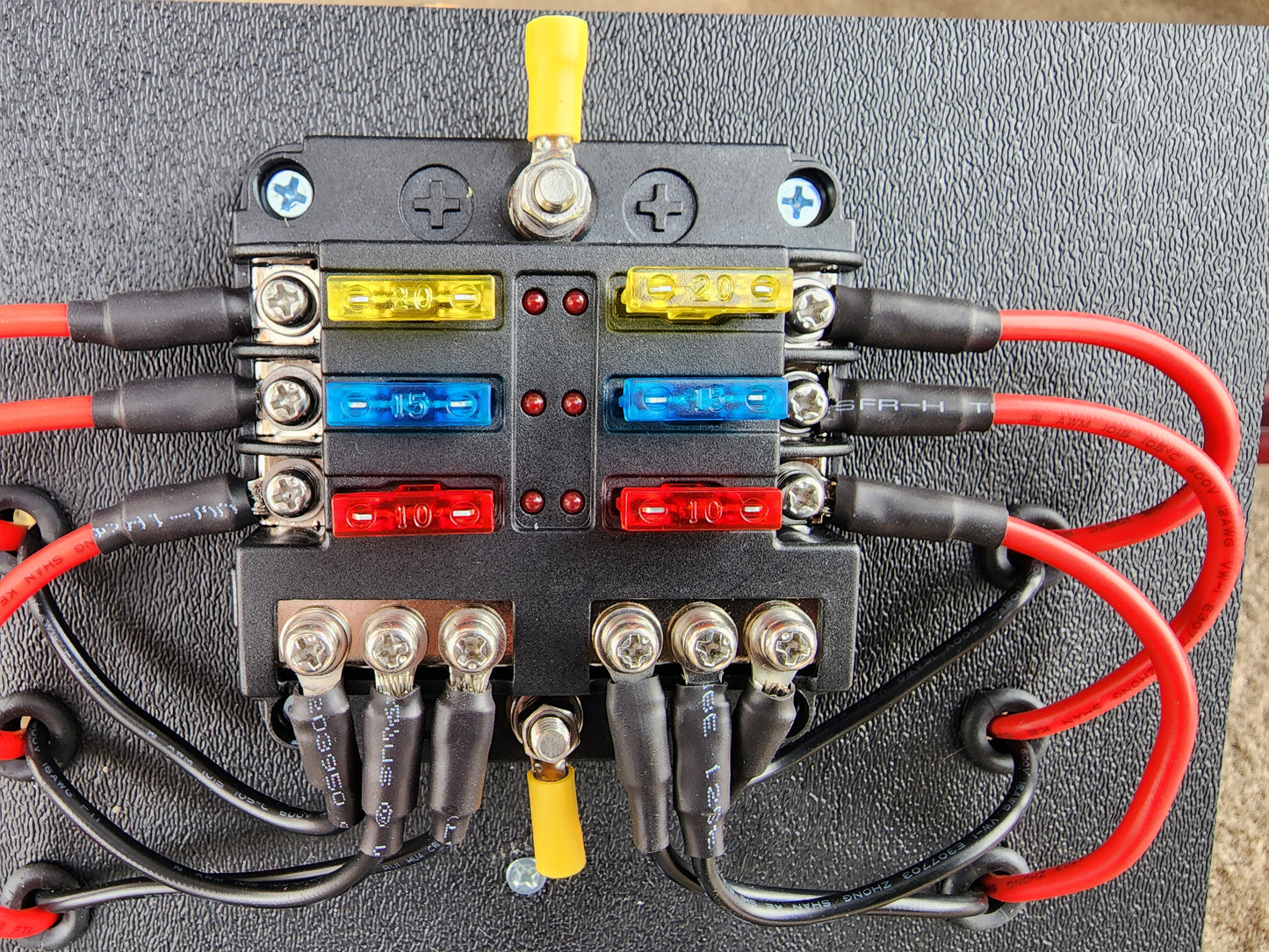

100 amp rated fuse box

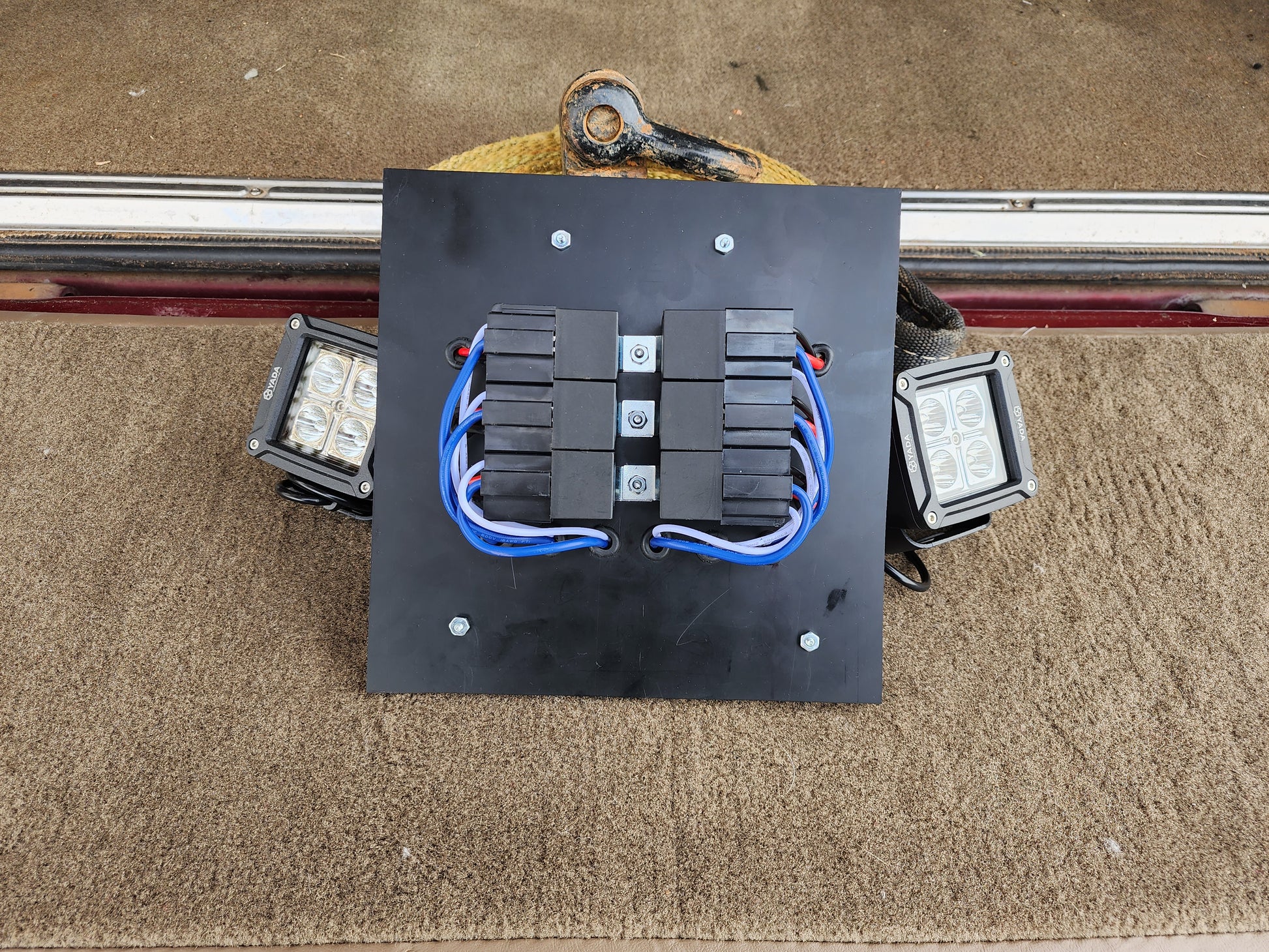

6 - 30 amp relays

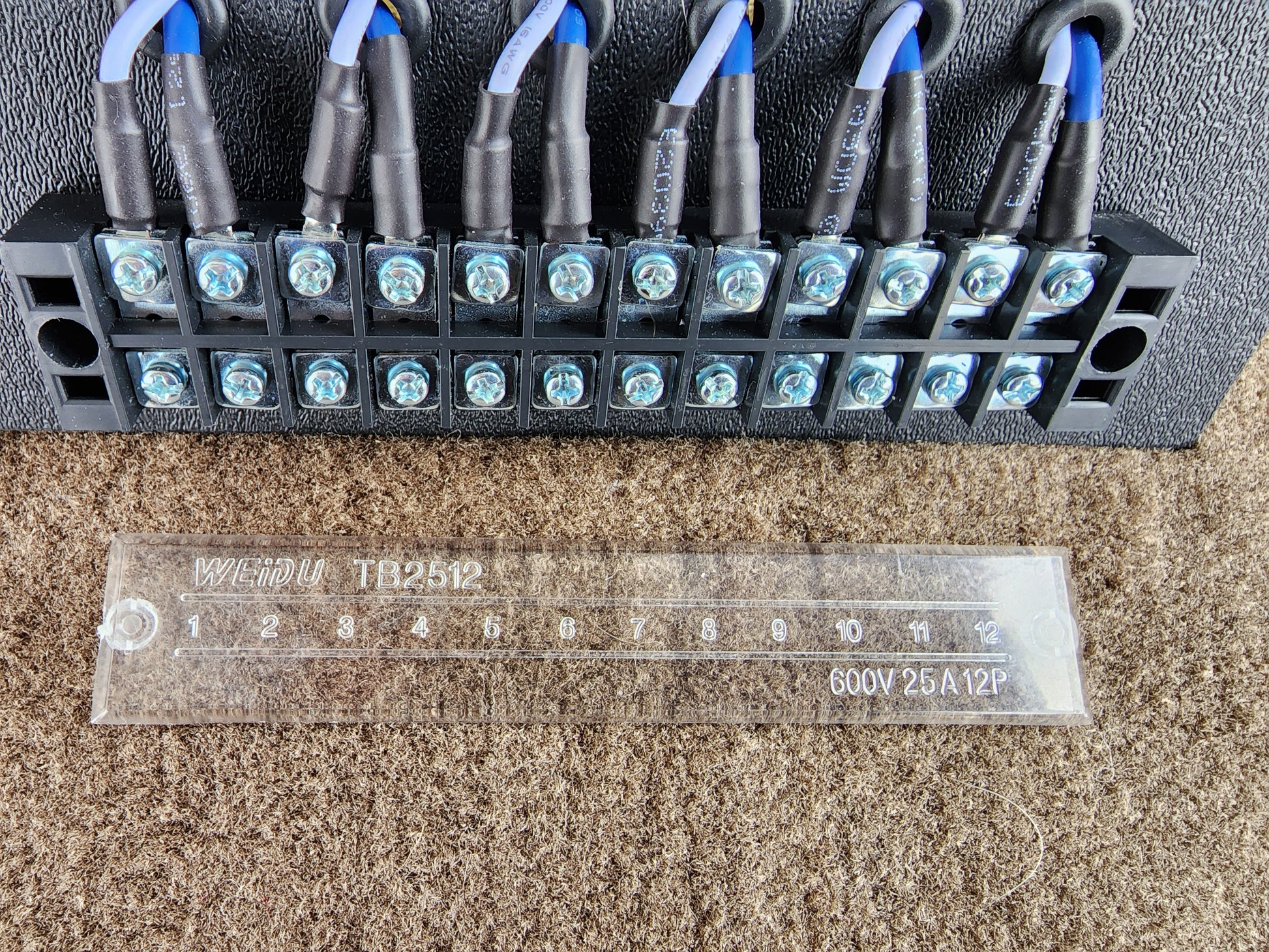

Simple connection point for switches and power
mounted to ABS plastic sheet

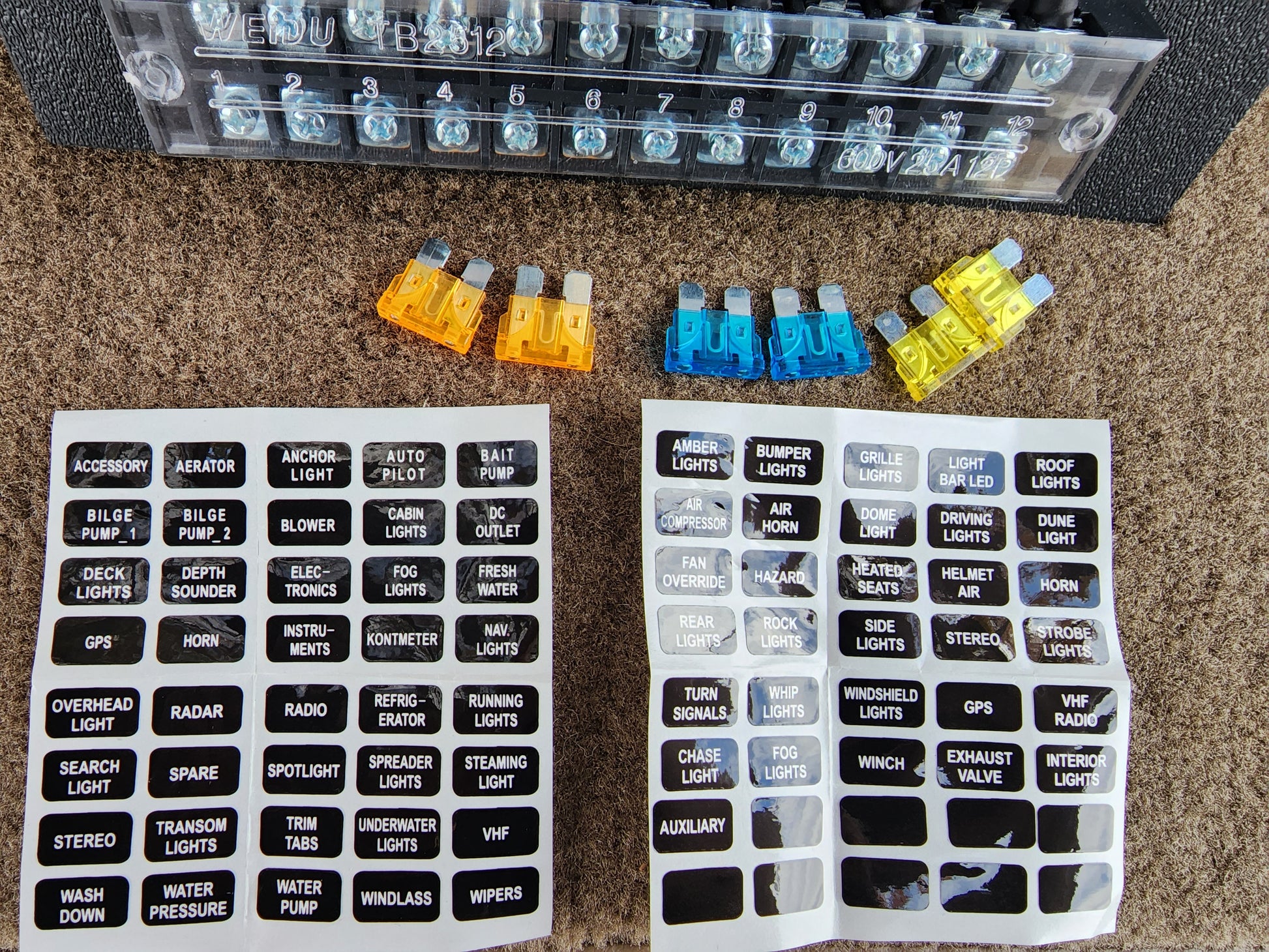

80 sticker labels included
Pre installed fuses: 2-20 amp, 2-15 amp, 2-10 amp
Spare fuses: 2-20 amp, 2-15 amp, 2-5 amp
Relay wire sizes: Red and Blue wires - 12 gauge, White and Black wires - 16 gauge
Panel measurements: Length- 9", Width- 9", Depth- 3"
Wiring Diagram for installation


All connections are double crimped and have heat shrink on them to ensure a long lasting connection.

***Warning: While we have made every effort to make installing this relay board as simple as possible, electricity is still dangerous and we at MaxFlate are not responsible for your wiring or any damages. This is for off road use only***


If you have any questions or would like a custom relay board made in a different size please reach out and we will be happy to assist you!

Please allow 2-3 days for panel to be built before shipping.
